Laboratory labor savings using a CellMek SPS Sample Preparation System when compared to manual preparation using customer established LDTs

Introduction

Flow cytometric immunophenotyping increasingly plays an integral role in the primary diagnosis and disease monitoring of many hematologic disorders. Accordingly, this has increased the need for consistent, high-quality testing methods. Advances in flow cytometry instrumentation, along with expanded availability of antibodies and fluorochromes, have improved identification of both normal and aberrant cell populations. However, automation in flow cytometry has not advanced as quickly as it has in other areas of the lab, and flow cytometry sample preparation remains a primarily manual process requiring highly skilled laboratory technologists.

Automation of sample processing presents a significant opportunity to address some of the challenges clinical flow cytometry laboratories face — with increasing test volume despite static or decreasing budget and staffing levels — while also improving quality, and reducing the potential for errors that can arise from manual methods.

The CellMek SPS Sample Preparation System can automate cell washing, antibody staining, lysing, and fixing samples for flow cytometry without any user intervention. It provides on-demand processing by running multiple programmable preparation methods in parallel, and continuous output of ready-toanalyze samples.

About the Testing Site

Tampa General Hospital is a 1041-bed hospital that serves as a regional safety net and the primary teaching hospital for USF Morsani College of Medicine.

The Flow Cytometry Lab is part of the Esoteric Testing Lab and performs over 2700 leukemia and lymphoma immunophenotyping analyses per year, in addition to lymphocyte subset quantitation, paroxysmal nocturnal hemoglobinuria (PNH) evaluations, fetal hemoglobin evaluations, and other specialized molecular and immunology testing.

Challenges

Coping with increased caseloads despite static or decreasing budgets and staffing levels

Flow cytometry labs are pressured to provide fast and accurate test results that enable clinicians to treat patients appropriately, while also meeting administrative expectations for productivity, staffing and training. This drives a continuous need for optimized workflows.

The US vacancy rate for highly trained flow cytometry technologists is approaching 10 percent. Workload from vacant positions is taken on by existing staff, increasing exhaustion and burnout, and in some cases limiting testing capacity.

Despite recent improvements to the flow cytometry ordering process and workflow, flow cytometry technologists spend significant time manually preparing each sample in addition to analyzing results. Automation of sample processing helps to reduce workloads and get test results to patients more quickly, thereby expediting their access to vital care.

Standardizing processing for reproducible results

Manual sample processing is dependent on each technologist’s unique skill level and technique, introducing an element of variability that can be difficult to differentiate from other sample-specific sources of variance. Variability, such as incomplete lysis and pipetting errors, introduces the potential for inconsistent results.

Automating manual steps in sample processing creates standardization and brings consistency to the process, improving workflow and reducing potential sources of error.

Laboratory Developed Tests (LDTs)

LDTs present challenges for automation because testing protocols and characteristics are determined by the individual lab and not by the manufacturer. Often, laboratories utilize multiple manufacturer’s antibodies and different antibody panel combinations, as well as variable processing and staining procedures to obtain test results.

The CellMek SPS sample preparation system is fully programmable, and capable of accommodating user-defined protocols, reagents, and antibodies to fully automate each lab’s unique processes.

Automating an LDT

Sample processing for LDTs for both leukemia and lymphoma (L&L) immunophenotyping, as well as lymphocyte subset quantitation (TBNK), were automated on the CellMek SPS Sample Preparation System using the CellMek Panel Designer Software. Incubation times were defined and optimized based on the specific procedure, and custom reagent labels were used to accommodate reagents and antibodies not manufactured by Beckman Coulter. Specimen washing was set to 5 cycles, 2% FCS in PBS was used in the wash buffer to address nonspecific binding, and 3X fix was made to account for differences between the automated protocol and the manual LDT.

Hands-on time for the purpose of this study includes technologist interactions and process monitoring.

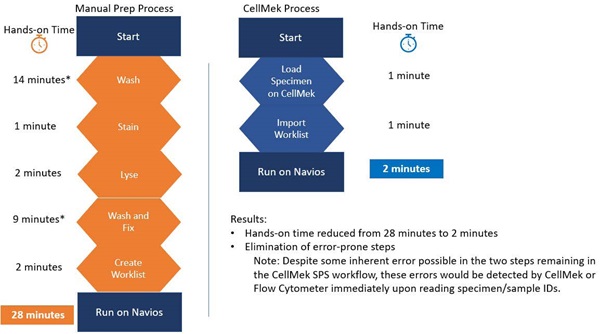

Figure 1. Reduction in error-prone steps and hands-on time for LDT leukemia and lymphoma Immunophenotyping sample processing with CellMek SPS Sample Preparation System.
*Spin time included

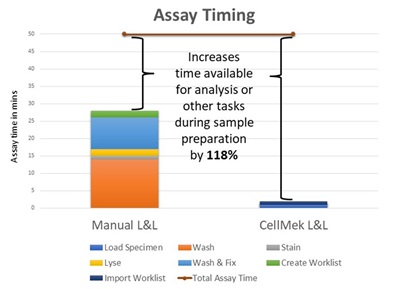

Figure 2. Increased efficiency with CellMek SPS System for LDT leukemia and lymphoma immunophenotyping.

As minimum incubation times are fixed, processing times on the CellMek SPS System cannot be significantly faster than manual sample preparation. However, sample preparation with the CellMek SPS System yields significant savings in hands-on time, as the process is fully automated, requiring minimal input from the technologist. Automation on the CellMek SPS System reduced the hands-on time for sample preparation of peripheral blood for L&L immunophenotyping assay from 28 minutes to 2 minutes, thereby increasing the time available for analysis or other tasks by 118%.

Figure 3. Reduction in error-prone steps and hands-on time for Lymphocyte subset quantitation sample preparation with the CellMek SPS System.

Figure 4. Increased efficiency with CellMek SPS over TQ-Prep for lymphocyte subset quantitation.

The current LDT process is semi-automated, with incubation and lysis performed using a Beckman Coulter TQ-Prep Workstation. Additionally, the CellMek SPS System does not currently add Flow-Count Fluorospheres for cell enumeration, so after processing, these were added manually to each prepared sample tube before placing on the Navios flow cytometer. Even with this manual step, automation on the CellMek SPS System reduced the hands-on time for processing 4 samples for peripheral blood lymphocyte subset quantitation from 21 minutes to 7 minutes, thereby increasing the time available by 28%.

Discussion

Overall, we found automation of our LDTs on the CellMek SPS Sample Preparation System to be a straightforward process that resulted in significant savings in technologist hands-on time. Automated preparation of flow cytometry samples presents a significant opportunity to streamline, optimize, and standardize workflows in flow cytometry laboratories.

References

  1. Garcia E, Kundu I, Kelly M, Soles R. The American Society for Clinical Pathology 2020 Vacancy Survey of Medical Laboratories in the United States. Am J Clin Pathol. 2021 Dec 1; aqab197. doi: 10.1093/ajcp/aqab197.
  2. Brestoff JR, Frater JL. Contemporary Challenges in Clinical Flow Cytometry: Small Samples, Big Data, Little Time. J Appl Lab Med. 2022 Jun 30;7(4):931-944. doi: 10.1093/jalm/jfab176. PMID: 35061902.
  3. Fiona E. Craig, Kenneth A. Foon; Flow cytometric immunophenotyping for hematologic neoplasms. Blood 2008; 111 (8): 3941–3967. doi: https://doi.org/10.1182/blood-2007-11-120535

Results may vary depending on user factors, including protocol and assay being performed. The results are based on an efficiency study completed by Tampa General Hospital, USA, wherein one person was dedicated to either automated or manual preparation.
