DURAClone IM Dendritic Cell Panel Design Principle

Markers

 Specificity  Purpose Clone Fluorochrome Laser Filter
 CD45 Leukocyte gating  J33 Krome Orange 405nm 525/40
CD3 T cell lineage (stacked) UCHT1 PE 488nm  585/42
 CD14 Monocyte lineage (stacked) RM052 PE 488nm 585/42
 CD19 B cell lineage (stacked) J3-119 PE 488nm 585/42
CD20  B cell lineage (stacked) HRC20 PE 488nm 585/42
 CD56 T cell lineage (stacked) N901 PE 488nm 585/42
 HLA-DR Dendritic cell gating Immu-357 Pacific Blue 405nm  450/45
 CD123 Plasmacytoid DC subtype SSDCLY107D2 APC-Alexa Fluor 700 638nm 712/25
 CD11c Myeloid DC subtype BU15 PE-Cy7 488nm 763/43
 CD16 Inflammatory DC subtype 3G8 FITC 488nm 525/40
 CD1c MDC1 subtype L161 PE-Cy5.5 488nm 690/50
 CD370 (Clec9A) MDC2 subtype 8F9 APC 638nm 660/10

Antigen Density

This table provides expression data on the markers included in the panel for the major blood cell types.  This information is a useful aid in panel design and assessing staining results.  Fluorochrome to marker combinations were chosen to reduce spillover between channels where the resolution is needed to identify populations.  The exact resolution achieved will be a property of these choices along with the capabilities of the instrument used for acquisition.

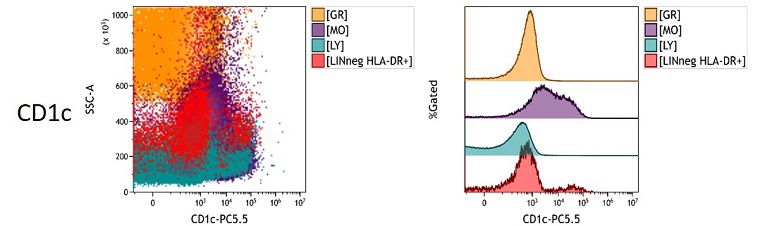

CD1c Measured Antigen Density in peripheral blood

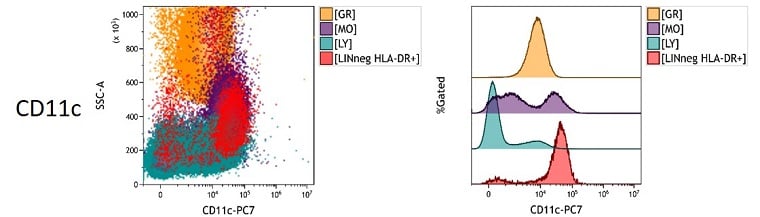

CD11c Measured Antigen Density in peripheral blood

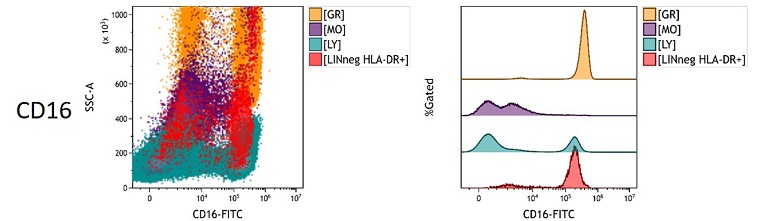

CD16 Measured Antigen Density in peripheral blood

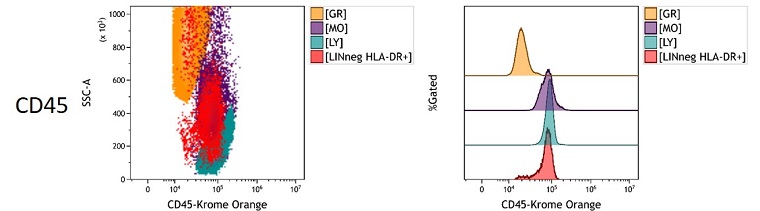

CD45 Measured Antigen Density in peripheral blood

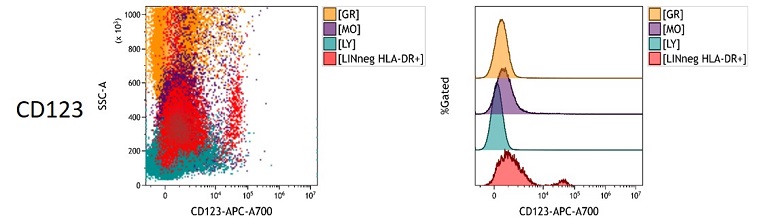

CD123 Measured Antigen Density in peripheral blood

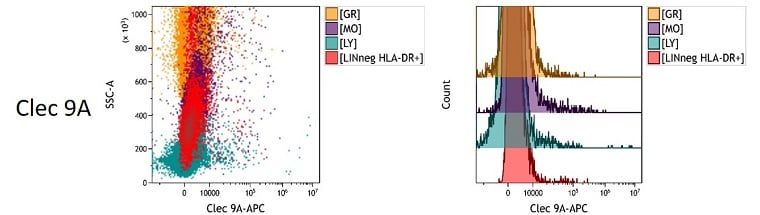

Clec9A Measured Antigen Density in peripheral blood

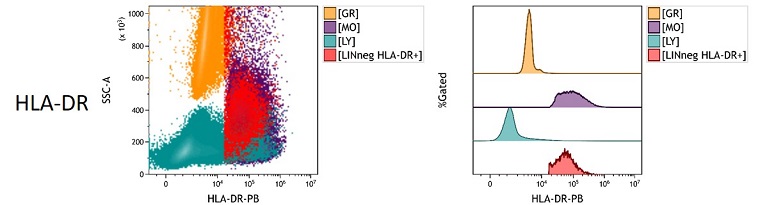

HLA-DR Measured Antigen Density in peripheral blood

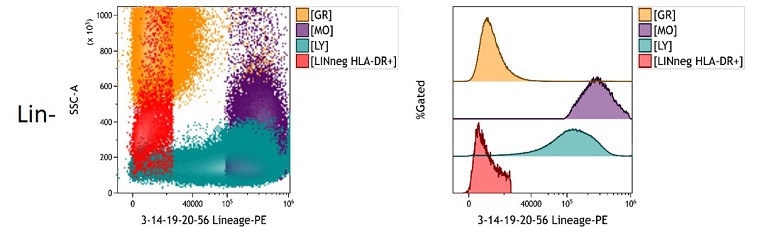

Lin neg Measured Antigen Density in peripheral blood

Characterization of Antigen Density. The sample was prepared by staining peripheral blood in a DURAClone IM Dendritic Cell Antibody Panel (Part Number B53351) following manufacturer’s instructions and acquired on a CytoFLEX LX N-V-B-Y-R-I Flow Cytometer. Data was analyzed using Kaluza Analysis software.  Dot plots show SSC x marker staining with lymphocytes in green, monocytes in purple and granulocytes in red. Histograms show antigen expression patterns on the major cell types using the same color coding.

Co-expression Patterns and Spillover Rules

DURAClone IM Dendritic Cell Panel Design Rules

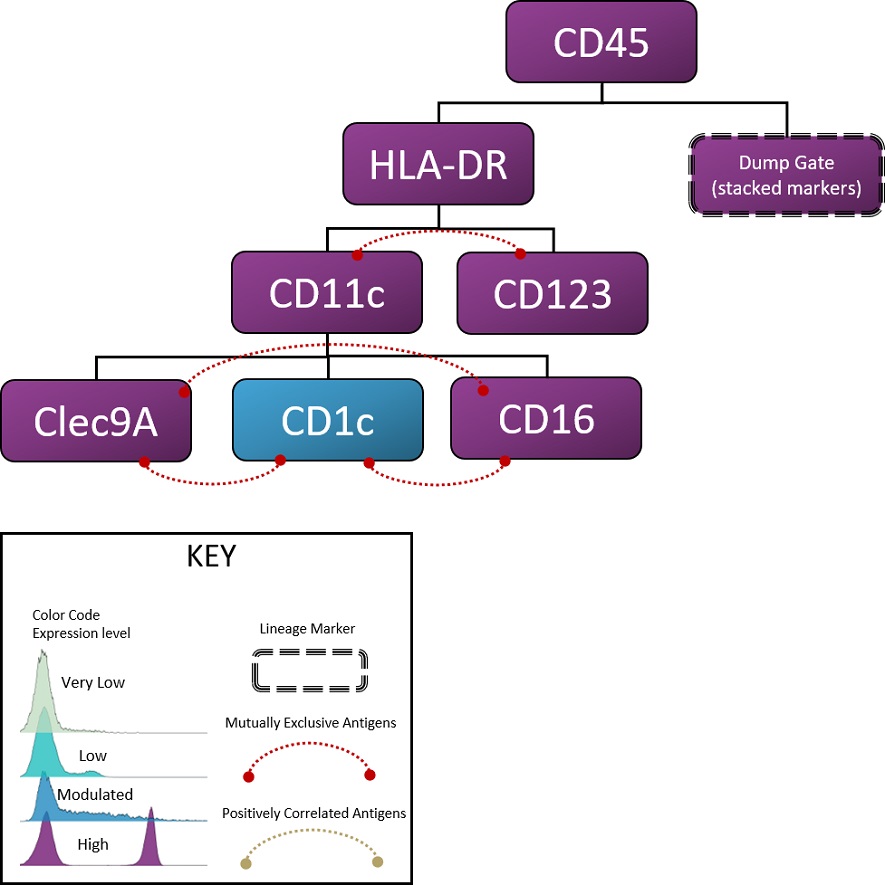

Hierarchical tree structure showing parent-child relationships between the interrogated antigens. Child nodes inherit the properties of the parent nodes above it in the tree.  To illustrate, all populations in the analysis will be CD45+, inheriting that property from the parent node. As a principle, spillover from parent to child nodes should be minimized, while spillover from child to parent nodes will not cause a loss of resolution.  Nodes at the same hierarchy level without dashed connections are co-expressed antigens whose resolution is impacted by spillover. Colored boxes indicate the expression pattern for the given marker, the lower the expression the more important it will be to avoid spillover from other dyes into that channel. Mutually exclusive antigens in the same level are indicated with a dashed red line.  Spillover between these detectors will not cause a loss of resolution as the signals will not be present on the same event.  Pairs of antigens that are either double-positive or double-negative are positively correlated antigens that can tolerate spillover, indicated with a dashed gold line.
