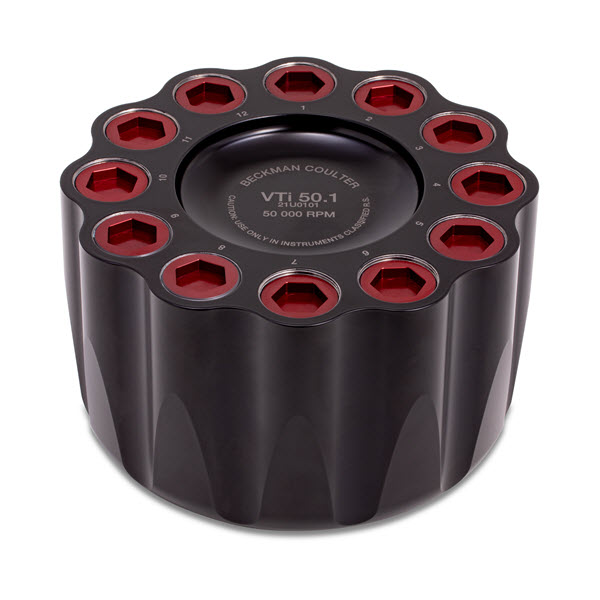

VTi-50.1 Vertical-Angle Rotor

Product No:C78759


Straight up, it's better!


Purpose-built for Optima Series ultracentrifuges, the VTi 50.1 vertical rotor helps you produce more in less time with rapid density gradient separations. Its short pathlength enables faster run times at high resolution, while the durable rotor structure enables higher density applications without de-rating speed.



  • Faster Density Gradient Formation

  • 50% More Volume (469 mL)

  • Robust Construction

  • Common Consumables and Adapters


Download Datasheet


DISCOVER THE NEW 3D EXPERIENCE


See the Rotor in 3D


The VTi 50.1 Vertical Rotor Assembly includes:



Request a Quote

Resources + Tools
Technical Documents Tubes & Bottles Rotor Calculator
C78759_VTi-50.1 Vertical-Angle Rotor
C78759-VTi-50.1 Vertical-Angle Rotor_1
C78759-VTi-50.1 Vertical-Angle Rotor_2

Product Specifications

Platform Floor Prep
Rotor Type Vertical (Ultracentrifugation)
Maximum RPM 50,000 rpm
Max g-Force 251,000 xg
k-Factor 34

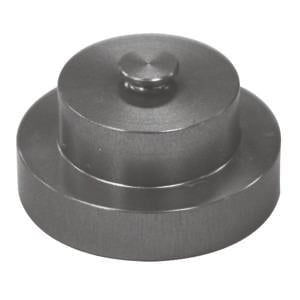

Adapters 342417, 343448, 362204
Number of Tubes 12 x 39 mL, 25 x 89 mm
Caps and Spacers 342417 │ 343448 │ 362204
Nominal Capacity 468mL
rMAX 89.7
rMIN 63.9
BioSafe Bio-Enhanced
Materials Titanium
