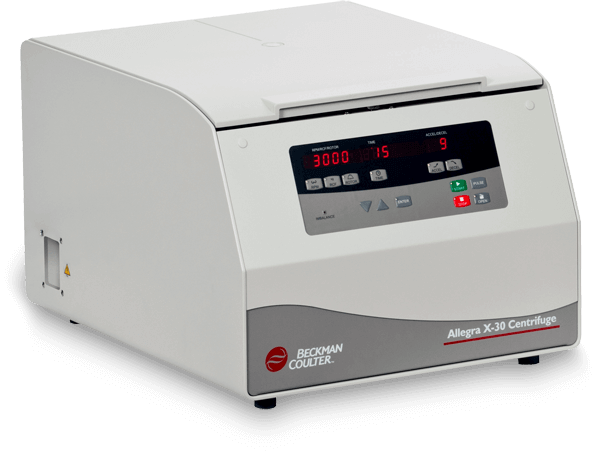

Allegra X-30R IVD 100V, 50/60 Hz Centrifuge
Product No:B06323
This IVD variation of the X-30R can be used in a clinical environment. Refrigerated model cools from room temperature to 4° C in fewer than ten minutes and has an operating temperature range of 2° C to 40° C (35° F to 104° F).
The X-30R provides excellent performance and easy operation in a compact design that saves valuable time and laboratory space with the highest speed and g-force in its class (1.6L max capacity, 18,000 RPM, 29,756 x g). Simple and quick run setup. Versatile, with an extensive rotor library for multiple applications, plus a compact Design of only 18" wide (46cm). Includes a BioCertified* swinging-bucket and fixed-angle rotors.
Rotor details: Three ways to spin the 1.5 mL PCR Tubes; Biocertified* 24-place fixed-angle rotor - 29,756 x g; 30-place fixed-angle rotor - 28,672 x g; 24-place swinging-bucket rotor - 16,244 x g for flat pelleting. One rotor spins 500 μL to 1.6 L; 4 x 400 mL - maximum capacity; 4,700 rpm - 4,255 x g - maximum g-force; 20 adapters.
Spins the following labware: 400 mL bottles; 250 mL bottles; 100 mL, 94 mL, 85 mL bottles; 50 mL conical and round-bottom tubes; 15 mL conical and round-bottom tubes; 30 mL, 25 mL, 10 mL tubes; 1.5 mL and 500 μL PCR tubes.
*BioCertified is a term used to describe products tested and validated to demonstrate containment of microbiological aerosols by an independent, third-party facility (Health Protection Agency, Porton Down, UK or USAMRIID, Ft. Detrick, MD, USA). Improper use or maintenance may affect seal integrity and, thus, containment.
List Price -
Resources + Tools
Product Specifications
Platform | Allegra 21 |
Maximum Speed | 18,000 rpm |
Maximum g-Force | 29756 x g |
Acceleration | 10 acceleration profiles |
Deceleration | 10 deceleration profiles |
Timed Run | To 9 hrs 59 mins or Continuous run (8) |
Max Capacity Volume Range | - 1600 mL |
Refrigeration System | Yes, CFC-Free |
Drive Type Cooling | Brushless Induction |
Temperature Range(s) | From -20°C to 40°C in 1° increments |
Friction Reduction System | Asynchronous 3-phase Direct Drive |
Installation Category | II |
Weight | 78 kg(172 lb) |
Width | 46 cm(18.1 in) |
Depth | 70.7 cm(27.8 in) |
Height | 37 cm(14.6 in) |
Power Requirements | 100V, 50-60Hz |
