DURAClone IF T Helper Cell Panel Design Principle


 Specificity  Purpose Clone Fluorochrome Laser Filter
 CD3 T cell lineage UCHT1  Alexa Fluor 750 638nm 763/43
 CD4 T helper cell lineage 13B8.2 APC 638nm 660/10
 IL-4 T cell function MP4-25D2 PE-Cy7 488nm 763/43
 IFN-γ T cell function 45.15   FITC 488nm 525/40
 IL-17A T cell function Bl168 Pacific Blue 405nm 450/45

Antigen Density

This table provides expression data on the markers included in the panel for the major blood cell types.  This information is a useful aid in panel design and assessing staining results.  Fluorochrome to marker combinations were chosen to reduce spillover between channels where the resolution is needed to identify populations.  The exact resolution achieved will be a property of these choices along with the capabilities of the instrument used for acquisition.

CD3 Measured Antigen Density in peripheral blood

CD4 Measured Antigen Density in peripheral blood

IFNg Measured Antigen Density in peripheral blood

IL4 Measured Antigen Density in peripheral blood

IL-17A Measured Antigen Density in peripheral blood

Characterization of Antigen Density. The sample was prepared by staining peripheral blood in a DURAClone IF T Helper Cell Antibody Panel (Part Number C04666) following manufacturer’s instructions and acquired on a CytoFLEX LX N-V-B-Y-R-I Flow Cytometer. Data was analyzed using Kaluza Analysis software.  Dot plots show SSC x marker staining with lymphocytes in green, monocytes in purple and granulocytes in red. Histograms show antigen expression patterns on the major cell types using the same color coding.

Co-expression Patterns and Spillover Rules

DURAClone IF T Helper Cell Basic Panel Design Rules

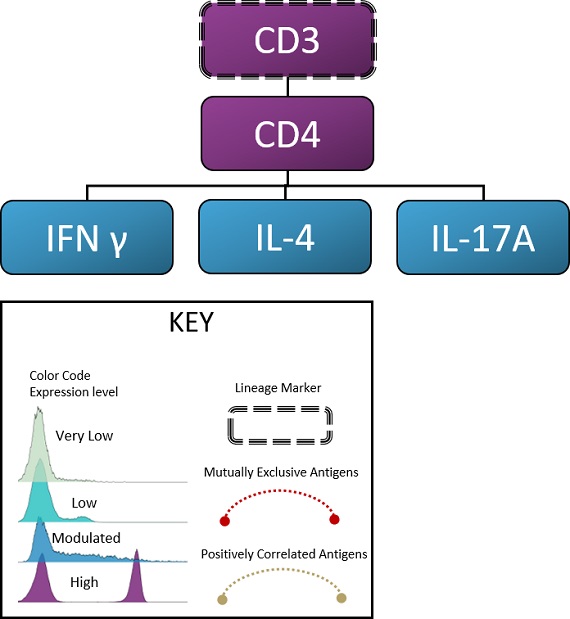

Hierarchical tree structure showing parent-child relationships between the interrogated antigens. Child nodes inherit the properties of the parent nodes above it in the tree. To illustrate, all populations in the analysis will be CD45+, inheriting that property from the parent node. As a principle, spillover from parent to child nodes should be minimized, while spillover from child to parent nodes will not cause a loss of resolution. Nodes at the same hierarchy level without dashed connections are co-expressed antigens whose resolution is impacted by spillover. Colored boxes indicate the expression pattern for the given marker, the lower the expression the more important it will be to avoid spillover from other dyes into that channel. Mutually exclusive antigens in the same level are indicated with a dashed red line. Spillover between these detectors will not cause a loss of resolution as the signals will not be present on the same event. Pairs of antigens that are either double-positive or double-negative are positively correlated antigens that can tolerate spillover, indicated with a dashed gold line.
