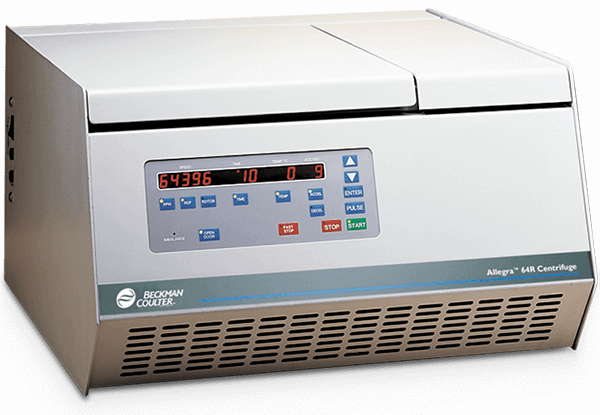

Allegra 64R Benchtop Centrifuge, Refrigerated, 60Hz 200V
Product No:367585
High-performance power in a benchtop centrifuge. Providing the performance of floor-standing instruments several times its size, the Allegra 64R is a benchtop centrifuge specifically designed for high speed separations. Providing 64,400 x g (30,000 rpm), the Allegra 64R is ideal for subcellular fractionation, protein isolation and purification, viruses and phase extractions.
Features 64,000 x g (30,000 rpm) with fixed-angle rotor; Spin tubes from 0.25 up to 85 mL; Operating temperature from 2° C to 40° C; Rotors certified by Porton Down UK for Biocontainment.
Resources + Tools
Product Specifications
| Platform | Allegra 64 |
| Maximum Speed | 30,000 rpm |
| Maximum g-Force | 64400 x g |
| Acceleration | 10 acceleration profiles |
| Deceleration | 10 deceleration profiles |
| Timed Run | Set (up to 9 hours 59 minutes); Continuous |
| Max Capacity Volume Range | - 510 mL |
| Refrigeration System | Yes |
| Drive Type Cooling | Brushless Induction Drive |
| Temperature Range(s) | From -20°C to 40°C in 1° increments |
| Pollution Degree | 2 |
| Installation Category | II |
| Weight | 102.1 kg(225.1 lb) |
| Width | 61 cm(24 in) |
| Depth | 66 cm(26 in) |
| Height | 38 cm(15 in) |
| Clearances | 7.6 cm: side & rear |
| Humidity Restrictions | 95% (non-condensing) |
| Power Requirements | 60 Hz, 200 VAC |
Related Products or Parts
F2402H Biocontainment Rotor, Aluminum- 24 x 2.0 mL, 26,000 rpm, 61,970 x g
F2402H Rotor Assembly, Fixed-Angle, Bio-certified, Aluminum; Major applications: Pelleting subcellular organelles, nucleic acids, viruses, bacteria, mitochondria, chloroplasts, or algae. 1" cellpadding, 4" cellspacing, 0" class. Allegra 64R, Allegra X-22, Allegra X-22R, Allegra X-30, Allegra X-30R; Max RPM 26,000, 14,500, 15,500, 16,000, 18,000; Max RCF, 61,970, 19,309, 22,065, 23,511, 29,756. Notes: Maximum speed/RCF are different in the Allegra 64R centrifuge, Allegra X-30 Series centrifuges, and the Allegra X-22; Series centrifuges. This rotor is rated at a lower speed in the Allegra X-30, X-30R, X-22, X-22R centrifuges, so g-forces and k factors are different. For use in Allegra 64R, Allegra X-30 Series, Allegra® X-22 Series, and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.
F3602 Fixed-Angle Aluminum Rotor 36 x 2 mL, 22,000 rpm, 47,618 x g
F3602 Fixed-Angle Rotor, Aluminum; Major applications: Pelleting subcellular organelles, nucleic acids, viruses, bacteria, mitochondria, chloroplasts, or algae. Places: 36 Tube Volumes: 1.5/2.0 mL microcentrifuge tubes; Max rpm: 22,000 rpm; Max Force: 46,530 x g. For use in Allegra 64R and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.
F1010 Fixed-Angle Aluminum Rotor 10 x 10 mL, 26,000 rpm, 57,440 x g
F1010 Fixed-Angle Rotor (35 Angle), Aluminum. Major applications: Pelleting subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae. 1" cellpadding, 4" cellspacing; WIDTH: 524px; HEIGHT: 100px; Allegra 64R, Allegra X-22, Allegra X-22R, Allegra X-30, Allegra X-30R. Max RPM 26,000, 14,500, 15,300, 16,000, 18,000. Max RCF 57,440, 17,896, 29,926, 21,791, 27,579. Notes: Maximum speed/RCF are different in the Allegra 64R, Allegra X-22 and Allegra X-30 centrifuges. This rotor is rated at a lower speed in the Allegra X-30 and X-30R centrifuges, so g-forces and k factors are different. For use in Allegra 64R, Allegra X-22 Series, Allegra X-30 Series, and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.
F0630 Fixed-Angle Aluminum Rotor 6x38.5 mL, 26,200 rpm, 59,860 x g
F0630 Fixed-Angle Rotor, Aluminum; Major applications: Pelleting subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae. 1" cellpadding, 4" cellspacing, 0 class.
Allegra 64R; Allegra X-22; Allegra X-22R; Allegra X-30; Allegra X-30R; Max RPM 26,200; 14,500; 15,300; 16,000; 18,000; Max RCF, 59,860, 18,367, 20,450, 22,364, 28,305. For use in Allegra 64R, Allegra X-22, X-30 Series centrifuges, and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.
F0650 Fixed-Angle Aluminum Rotor 6 x 50 mL, 21,000 rpm, 41,400 x g
F0650 Fixed-Angle Rotor, Aluminum, Major applications: Density gradient separations of erythrocytes, cell lysate fractions, granules, as well as different separations of DNA, proteins, and viruses. Places: Tube Volumes: 50 mL Round-Bottom tubes; Max RPM: 21,000 rpm; Max Force: 41,400 x. For use in Allegra 64R and discontinued Avanti 30 centrifuges.
F0850 Fixed-Angle Aluminum Rotor 8 x 50 mL, 16,500 rpm, 29,220 x g
F0850 Fixed-Angle Rotor, Aluminum; Major applications: Density gradient separations of erythrocytes, cell lysate fractions, granules, as well as different separations of DNA, proteins, and viruses. Places: 8 Tube Volumes: 50 mL microcentrifuge tubes 1", cellpadding 4", cellspacing 0", class visitable. Allegra 64R, Allegra X-22, Allegra X-22R, Allegra X-30, Allegra X-30R; Max RPM 16,500, 9,000, 10,000, 9,000, 11,400. Max RCF, 29,220, 8,528, 10,528, 8,528, 13,682. Notes: Maximum speed/RCF are different in the Allegra 64R, Allegra 30 Series; centrifuges and the Allegra X-22 Series centrifuges. This rotor is rated at a lower speed in the Allegra X-22 and X-22R centrifuges, so g-forces and k factors are different. For use in Allegra 64R, Allegra X-22 Series, Allegra X-30 Series and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.
F0485 Fixed-Angle Aluminum Rotor 4 x 85 mL, 20,000 rpm, 40,700 x g
F0485 Fixed-Angle Rotor, Aluminum, Major applications: Pelleting subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae. Places: 4, Tube Volumes: 85 mL tubes, Max RPM: 20,000, Max RCF: 40,240 x g. For use in Allegra; 64R and discontinued Avanti; 30 centrifuges.
F0685 Fixed-Angle Aluminum Rotor 6 x 85 mL, 10,000 rpm, 10,864 x g
F0685 Fixed-Angle Rotor, Aluminum; Major applications: Pelleting subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae. Places: 6; Tube Volumes: 85 mL microcentrifuge tubes 1", cellpadding 4", cellspacing 0", class visitable". Allegra 64R, Allegra X-22, Allegra X-22R; Max RPM 15,500, 8,000, 10,000; Max RCF 26,320, 6,953, 10,864.
Notes: Maximum speed/RCF are different in the Allegra 64R centrifuge and the Allegra X-22 centrifuge. This rotor is rated at a lower speed in the Allegra X-22 and X-22R centrifuges, so g-forces and k factors are different. For use in Allegra 64R, Allegra X-22 Series, and discontinued GS-15 Series, Allegra 21 Series and Avanti 30 centrifuges.
C1015 Fixed-Angle Conical Tube Rotor, Aluminum
C1015 Fixed-Angle Rotor, Aluminum; Major applications: Pelleting of subcellular organelles, viruses, bacteria, mitochondria, chloroplasts, or algae.
C0650 Fixed-Angle Conical Tube Rotor, Aluminum
C0650 Fixed-Angle Rotor, Aluminum; Major applications: General pelleting of cells, bacteria, and food products; separation of proteins, viruses, and subcellular fractions; phase separation; and binding studies. Places: 6 Tube Volumes: 50 mL conical tubes 1" cellpadding 4" cellspacing 1" style; WIDTH: 497; HEIGHT: 145px; Max RPM; Notes: Maximum speed/RCF are different in the Allegra; 64R centrifuge, Allegra; X-30 Series centrifuges, and the Allegra; X-22 Series centrifuges. This rotor is rated at a lower speed in the Allegra; X-22 and X-22R centrifuges, so forces and k factors are different. For use in Allegra; 64R, Allegra; X-30 Series, Allegra; X-22 Series, and discontinued GS-15 Series, Allegra; 21 Series and Avanti; 30 centrifuges. Tubes and bottles not included.
