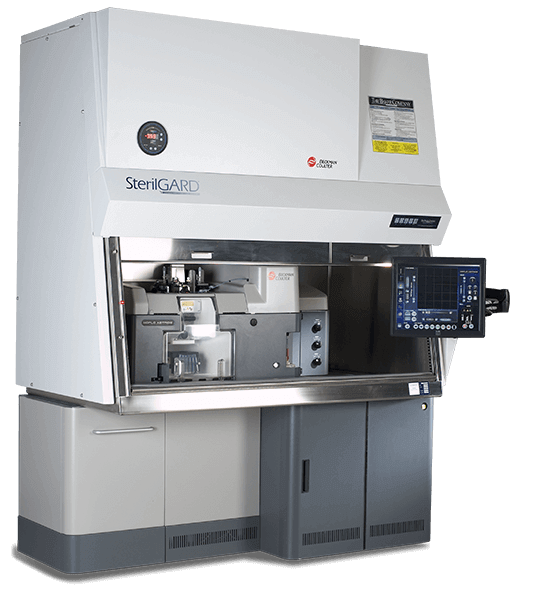

MoFlo Astrios EQ

Product No:B25982

Easy, intuitive and flexible. Simplify your most complex sorting tasks with the Astrios EQ, offering six-way jet-in-air proficiency that delivers powerful capability while reducing complexity. Leveraging the classic stable fluidic design and the electronic processing of the XDP, the Astrios and extended EQ sorters expand sorting capabilities with a full palette of laser options. Seven pinholes spatially separate each laser, providing the flexibility and expandability known to MoFlo sorting.

Product Specifications

Regulatory Status RUO
Signal Processing Log, height, area, width & log area for each parameter
Resolution Resolves 0.2 μm diameter particles in scatter from background
Detection Up to 7 spatially separated lasers across 44 parameters acquired simultaneously (51 total available) , Dual Forward Scatter
Flow Cell Jet-in-Air Nozzle: 70 μm, 100 μm
Sorting Performance Configurable with 355, 405, 488, 532, 561, 592, 640 nm lasers
Drop Dive Frequency Adjustable up to 200kHz
Operating System Windows® 7 Professional
Software Summit v62
Power Requirements USA 115 VAC; 50/60 Hz at 15 A, EU: 220 VAC; 50/60 Hz at 10, JP: 100 VAC; 50/60 Hz at 15 A
Humidity Restrictions 20%-80% (non-condensing)
Weight 567 kg(1250 lb)
Depth 77 cm(30.3 in)
Width 165 cm(65 in)
Height 129.5 cm(51 in)
