Optima MAX-TL (BioSafe)
Product No:B11229
BioSafe† Optima™ MAX-TL Tabletop Ultracentrifuge
120,000 rpm (with TLN-120 Rotor), 657,000 x g (with TLA-110 Rotor) for 50 Hz, 220/240 V; 60 Hz, 120V; 50/60 Hz, 100 V operation, CE/CSA/NRTL.
Includes Optima™ MAX HEPA Filter Kit.
†Biosafe is a term intended to describe the enhanced Biosafety features of our products.
120,000 rpm (with TLN-120 Rotor), 657,000 x g (with TLA-110 Rotor) for 50 Hz, 220/240 V; 60 Hz, 120V; 50/60 Hz, 100 V operation, CE/CSA/NRTL.
Includes Optima™ MAX HEPA Filter Kit.
†Biosafe is a term intended to describe the enhanced Biosafety features of our products.
Resources + Tools
Product Specifications
| Platform | Tabletop UCF |
| Maximum Speed | 120,000 RPM |
| Maximum g-Force | 657,000 xg |
| BioSafe | Yes |
| Acceleration | 10 acceleration profiles |
| Deceleration | 11 deceleration profiles |
| Timed Run | 99 min, 59 sec Continuous run, short run |
| Max Capacity Volume Range | 40.8 mL |
| Refrigeration System | Solid state (thermoelectric temperature control system with forced air, no coolant, no CFCs/ODCs) |
| Drive Type Cooling | Variable Frequency Induction Drive with rotor overspeed ID |
| Temperature Range(s) | 0 to 40°C in 1°C increments |
| Zonal Capability | False |
| Pollution Degree | 2 |
| Vacuum and Pump | Below 10 microns (1.34 Pa) |
| Installation Category | II |
| Display | Full-color LCD touchscreen |
| Finish | Coated Polycarbonate, Acrylic Baking Enamel, General Purpose Paint |
| Weight | 105 kg |
| Width | 73.9 cm |
| Depth | 61.7 cm |
| Height | 34.5 cm |
| Clearances | 7.6 cm: side & rear |
| Power Requirements | 100-120 VAC, 200-240 VAC, 50/60 Hz |
Related Products or Parts
TLA-100 Fixed-Angle Rotor Package
The TLA-100 is a fixed-angle titanium rotor designed for use in the Optima MAX, Optima MAX-XP, Optima TLX, and the discontinued TL-100 and Optima TL micro-ultracentrifuges. It has a tube angle of 30 degrees from the axis of rotation and can centrifuge up to 20 tubes.
TLA-100 Fixed-Angle Rotor
The TLA-100 is a fixed-angle titanium rotor designed for use in the Optima MAX, Optima MAX-XP, Optima TLX, and the discontinued TL-100 and Optima TL micro-ultracentrifuges. It has a tube angle of 30 degrees from the axis of rotation and can centrifuge up to 20 tubes.
TLS-55 Swinging-Bucket Rotor Package
The TLS-55 is a swinging-bucket rotor that holds four tubes, designed for use in Beckman Coulter Optima MAX, Optima MAX-XP, Optima TLX, and TL-100 micro-ultracentrifuges.
TLS-55 Swinging-Bucket Rotor
The TLS-55 is a swinging-bucket rotor that holds four tubes, designed for use in Beckman Coulter Optima MAX, Optima MAX-XP, Optima TLX, and TL-100 micro-ultracentrifuges.
TLA-100.3 Fixed-Angle Rotor
The TLA-100.3 is a fixed-angle titanium rotor designed for use in the Optima MAX, Optima MAX-XP, Optima TLX, and the discontinued TL-100 and Optima TL micro-ultracentrifuges. It has a tube angle of 30 degrees from the axis of rotation and can centrifuge up to 6 tubes.
TLA-100.3 Fixed-Angle Rotor Package
The TLA-100.3 is a fixed-angle titanium rotor designed for use in the Optima MAX, Optima MAX-XP, Optima TLX, and the discontinued TL-100 and Optima TL micro-ultracentrifuges. It has a tube angle of 30 degrees from the axis of rotation and can centrifuge up to 6 tubes.

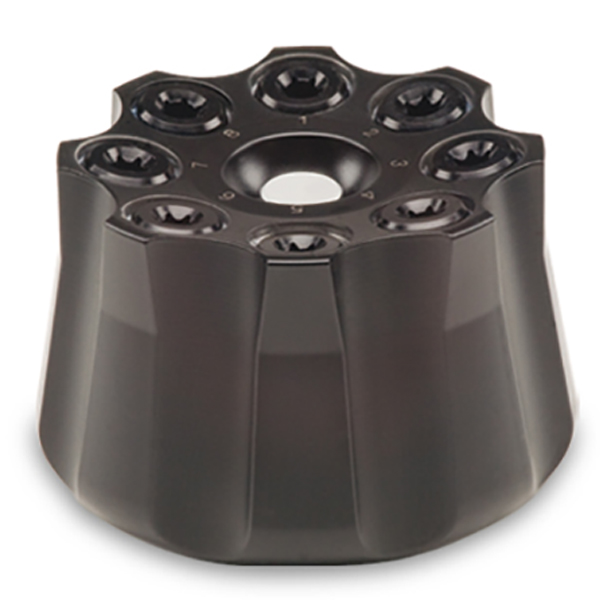

TLN-100 Near-Vertical Rotor Package, 100.000 rpm, 450.000 x g, 8 x 3.9 mL
TLN-100 Rotor Package, NVT Near-Vertical Rotor, 9 deg Angle, Titanium.
Major applications: Plasmid DNA separations in 4 hours. Note: Non-precipitating solutions up to 1.7 g/mL in density can be run in this rotor without a reduction in rotor speed.
For use in the Optima MAX-XP Benchtop Ultracentrifuge, Optima TLX personal micro-ultracentrifuges, and Optima MAX high-capacity personal micro-ultracentrifuges, and the discontinued TL-100 and Optima TL micro-ultracentrifuges.
TLA-120.1 Fixed-Angle Rotor Package
Major applications: Pelleting of subcellular fractions in 5-30 minutes; plasmid DNA separation in 3 hours. For use in the Optima MAX-XP Benchtop Ultracentrifuge, Optima TLX personal micro-ultracentrifuges, Optima MAX high-capacity personal micro-ultracentrifuges, and the discontinued TL-100 and Optima TL personal micro-ultracentrifuges.
TLA-120.2 Fixed-Angle Rotor Package
The TLA-120.2 is a fixed-angle titanium rotor designed for use in the Optima MAX, Optima MAX-XP, Optima TLX, and the discontinued TL-100 and Optima TL micro-ultracentrifuges. It has a tube angle of 30 degrees from the axis of rotation and can centrifuge up to 10 tubes.

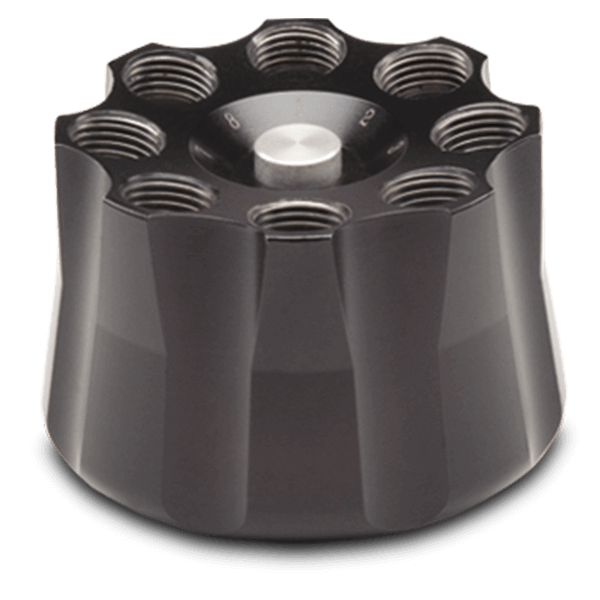

TLN-120 Near-Vertical Rotor Package
The TLN-120 is a near-vertical tube rotor with a tube angle of 8 degrees from the axis of rotation and can centrifuge up to eight 8 x 35-mm (1.2 mL) Quick-Seal tubes. Designed for use in Beckman Coulter Optima MAX, Optima MAX-XP, Optima TLX, and TL-100 tabletop ultracentrifuges.
TLA-120.2 Fixed-Angle Rotor
TLA-120.2 Rotor Assembly, Fixed-Angle, Titanium. Major Applications: Pelleting of subcellular fractions in 5-30 minutes, plasmid DNA separations in 3 hours. Note: Non-precipitating solutions up to 1.7 g/mL in density can be run in this rotor without a reduction in rotor speed. For use in Optima MAX-XP Benchtop Ultracentrifuge, Optima TLX personal micro-ultracentrifuges, Optima MAX high-capacity personal micro-ultracentrifuges, and the discontinued TL-100 and Optima TL-100 personal micro-ultracentrifuges.
TLA-120.1 Fixed-Angle Rotor
The TLA-120.1 is a fixed-angle titanium rotor designed for use in the Optima MAX, Optima MAX-XP, Optima TLX, and the discontinued TL-100 and Optima TL micro-ultracentrifuges. It has a tube angle of 30 degrees from the axis of rotation and can centrifuge up to 14 tubes.
TLA-55 Fixed-Angle Rotor Package
TLA-55 Rotor Package, Fixed-Angle (45 deg Angle), Aluminum. Major Applications: Rapid pelleting of nucleic acid precipitates in 1.5 mL tubes. For use in the Optima MAX-XP Benchtop Ultracentrifuge, Optima TLX personal micro-ultracentrifuges, and Optima MAX high-capacity personal micro-ultracentrifuges, and the discontinued TL-100 and Optima TL micro-ultracentrifuges.
