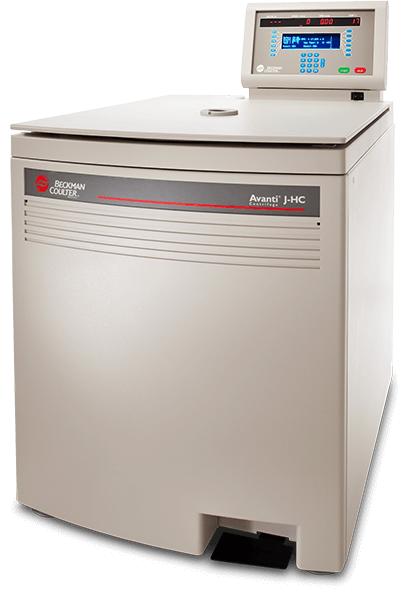

Avanti® J-HC High Capacity Centrifuge, 50/60 Hz, 200/208/240 V
Product No:367501
Efficiency, convenience and total control. The J-HC High Capacity Centrifuge provides you with a complete solution for batch bioprocessing with performance and biocontainment capabilities beyond high-speed or super-speed centrifuges. Spin a maximum of nine liters at speeds of 5,000 RPM and 7,480 x g for greater sample throughput. Process up to 36 liters per hour when harvesting bacteria. Enhanced operator safety is provided with disposable HarvestLine System Liners. The J-HC includes a high-torque, energy efficient drive for the fastest acceleration and deceleration possible with gentle precision. Also, advanced programmability, automatic rotor identification and imbalance safety check, CFC-free refrigerants, Friction Reduction System (FRS) for optimum temperature control, low energy consumption and low heat output. Includes Paperless documentation, data management, and current good manufacturing practice (CGMP) compliance with the Spintrace II network software. The J-HC is the highest capacity centrifuge in its class and provides the fastest accel and decel times with exclusive Switched Reluctance (SR) Drive technology.
Resources + Tools
Product Specifications
| Platform | Avanti |
| Maximum Speed | 10,000 rpm |
| Maximum g-Force | 17100 x g |
| BioSafe | No |
| Acceleration | Maximum or Slow |
| Deceleration | Maximum, Slow, Timed (1-10 minutes from 500-0 rpm) or Off |
| Speed Control | 25 x 𝘨-force control sets speed to nearest ± 50 rpm |
| Timed Run | 1 min to 99 hrs, 59 mins (timed run); Total centrifuge effect (g-seconds) or Continuous hold |
| Max Capacity Volume Range | Up to - 9 L |
| Refrigeration System | Non-CFC, non-ozone depleting refrigerant |
| Temperature Range(s) | From -10°C to +40°C in 1° increments |
| Pollution Degree | 2 |
| Environmental Conditions | -10°C to 40°C in 1° increments |
| Installation Category | II |
| Software | Virtual Network Computing (VNC), Mobile Fuge app for Apple iOS and Android |
| Material(s) | Steel, Structural Foam |
| Finish | Polycabonate overlay on top of surface door, Powder Coat Paint |
| Weight | 300 kg(661.4 lb) |
| Width | 71 cm(28 in) |
| Depth | 86 cm (102.0 cm with air direviter extending) |
| Height | 86 cm (152 cm with door open) |
| Clearances | 7.6 cm (sides) & 16 cm (rear) |
| Humidity Restrictions | < 95% (non-condensing) |
| Power Requirements | 200/208/240 V, 50/60 Hz |
