Avanti JXN-26 Series

Experience simplified high-throughput sample processing and more control with the Avanti® JXN-26. Rely on the powerful features, improved imbalance tolerance, and quiet performance.

The Avanti JXN-26 stands out with these enhanced features:

  • Monitoring and control flexibility with MobileFuge
  • Advanced, easy-to-use data management
  • Ergonomic design
  • Intuitive interface



Request a Quote

Avanti JXN-26 Series Features

Data Management Provides Traceability

  • Ideal for supporting numerous protocols in shared labs or GMP environments
  • Utilize data logging and real-time run graphing
  • Password protection for up to 50 unique user profiles
  • Network multiple instruments
  • Set up and store numerous protocols

Application Versatility

  • Temperature control is optimized ensuring sample quality and avoiding unwanted artifacts

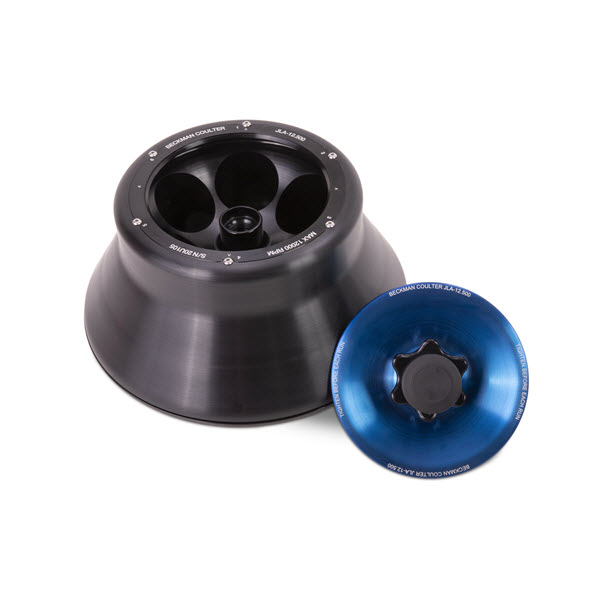

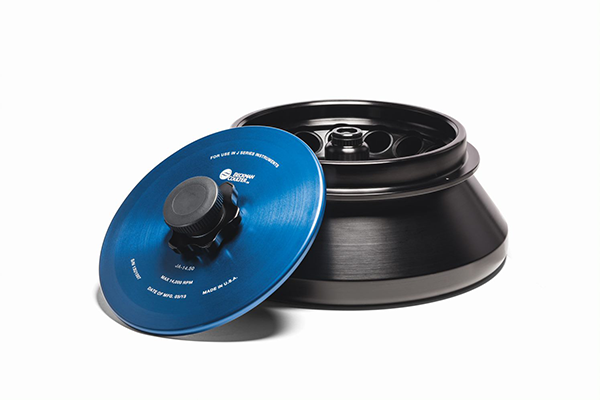

  • Compatible with an extensive library of rotors, including fixed-angle and swinging bucket
  • Adaptable for numerous application and workflow needs – includes BioSafe system providing operator safety and sample protection
  • Broad labware range including Harvest Liners provide a complete sample protection solution.

Safe and Sustainable

  • Dynamic Rotor Inertia Check (DRIC) and rotor recognition provide redundant safety checks to assure no rotor can be run above its rated speed
  • High-torque, Switched Reluctance (SR) drive cycle shortens cycle times
  • Uses less energy than traditional centrifuges



Easy to use software

  • Simultaneous display of set and actual run conditions
  • Rotor selection by name (not code)
  • 11 acceleration/12 deceleration rates
  • Delay start
  • Run times to 99:59, Hold, and ω2t integrator for applications requiring precise reproducibility

Explore Avanti JXN-26 Models

Avanti JXN-26 Series Specifications

BioSafe Yes
Acceleration 11 acceleration profiles
Deceleration 12 profiles
Speed Control ± 10 rpm of set speed or 0.1%, whichever is greater
Timed Run Up to 99 hrs, 59 mins
Max Capacity Volume Range 1 - 6 L
Temperature Control ± 2 °C of set temperature after equilibration
Temperature Range(s) From -10°C to +40°C in 1° increments
Item Specifications Referenced B38619
