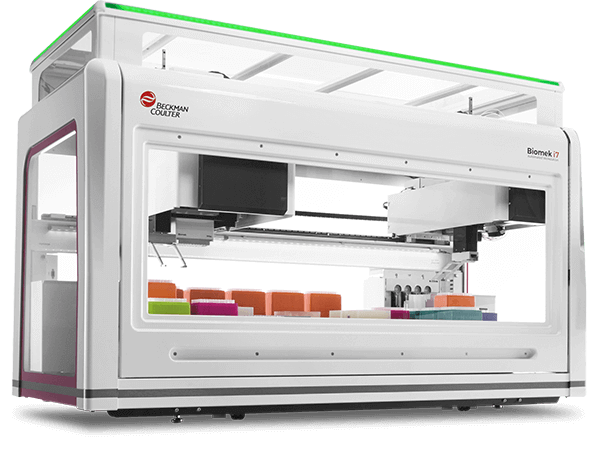

Biomek i7 Automated Workstation

The most powerful and comprehensive Biomek available.

  • High-throughput
  • 45 deck positions
  • 0.5 - 5,000 µL pipetting volume range
  • Single or dual heads

Explore Biomek i7 Models

Features

Versatile Workspace

  • Spacious, open-platform with grid-based deck
  • Up to 45 deck positions
  • Internal LED light
  • Automated Labware Positioners (ALPs) for sample processing
  • Optional enclosed version to protect samples from airborne particles
  • Integrate additional devices on- or off-deck
  • Configurable for specific applications

Flexible Pipetting and Workflow Management

  • Multiple single- & dual-arm configurations with Multichannel heads (96/384/Pin tool) and/or Span-8 pipetting
  • Large-volume 1 mL multichannel pipetting head
  • High-access, rotating gripper(s) with unique offset finger design
  • Disposable & fixed Biomek pipette tips (including septum piercing)
  • Transfer volumes from 0.5 µL - 5,000 µL
  • Independent Span-8 probe calibration
  • 8 channel liquid-level sensing
  • Supports labware from tubes to 1,536-well microplates
  • Accurate intra-well pipetting

Simple System Operation

  • Easily automate existing processes & execute quick workflow changes
  • Powered by icon-based software with data tracking & LIMS connectivity
  • Windows 10 OS
  • Extend walk-away operation with process management and scheduling software
  • Guided system setup
  • Automated deck framing
  • Data-driven method operations including hit-picking & normalization
  • Light curtain safety feature
  • Instrument status light bar
  • DeckOptix cameras for live, remote-monitoring & on-error video capture

Application-focused Solutions

  • Consultative workflow analysis
  • Expert application & technical support
  • Biomek-automated demonstrated methods & capabilities for genomic, drug discovery & basic research workflows

Product Specifications

Minimum Table Support Requirements 1xcm(0xin)
Pod and Tool Type 1μL - 300 μL 96-Channel Head; 5 μL -1200 μL 96-Channel head; 0.5 μL - 60 μL Multichannel-384 Head
Tip Type T30_384; T25F_384; T50_384; T40F_384; T80_384; T40F; T80_LLS; T40F_LSS; T90; T50F; T90_LSS; T50F_LLS; T230; T230_LSS; T190F_LLS; T230_WB; T1070; T1020_WB
Operating System Windows® 10
Software Biomek software, SAMI EX scheduling software, Biomek PowerPack software, Biomek Method Launcher, DART 2.0 software
Display 22" controller screen
Operating Modes Semi-automated, manual, controlled by operator
Item Specifications Referenced B87580
